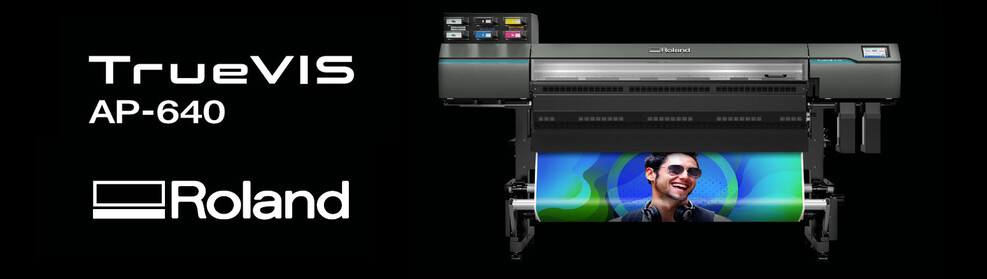

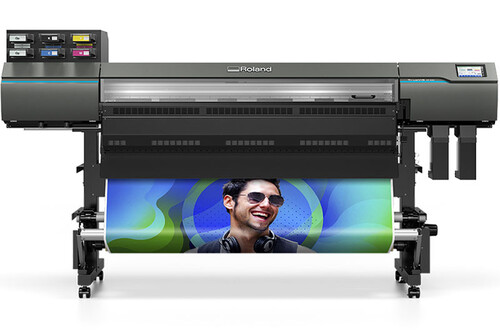

Storformatsskrivaren TrueVIS AP är byggd på den användarvänliga och tillförlitliga TrueVIS-plattformen. Utskrifterna är av hög kvalitet med hög färgmättnad. Bläcket är snabbtorkande vilket gör att omställningar och efterbehandlingar kan utföras direkt. Fördel med bläcket är att det uppfyller kraven för GREENGUARD Gold vilket innebär låga VOC-utsläpp.
Marabu är en certifierad partner till Roland DG och säljer TrueVIS AP, storformatsskrivare. Teckna ett serviceavtal i samband med ditt köp för att säkerställa att din maskin presterar som bäst alltid.
AP-640 | ||
---|---|---|
Printing method | Piezo ink-jet method | |
Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
Thickness | Max. 0.039 in. (1.0 mm) with liner | |
Roll outer diameter | Max. 9.8 in. (250 mm) | |
Roll weight | Max. 99 lb. (45 kg) | |
Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
Printing width (*1) | Max. 63.5 in. (1,615 mm) | |
Ink | Type | Resin ink 700 ml pouch |
Colors | Four colors (cyan, magenta, yellow, and black) and optimizer | |
Printing resolution (dots per inch) | Max. 1200 dpi | |
Ink drying system (*2) | Print heater set temperature: 77 to 113°F (25 to 45°C) Dryer set temperature: 158 to 230°F (70 to 110°C) | |
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
Power-saving function | Automatic sleep feature | |
Rated Input | Printer: 200-240 Va.c. 50/60 Hz 3 A Dryer 1: 200-240 Va.c. 50/60 Hz 10 A Dryer 2: 200-240 Va.c. 50/60 Hz 10 A | |
Power consumption | During operation | Approx. 4,000 W |
Sleep mode | Approx. 65 W | |
Acoustic noise level | During operation | 69 dB (A) or less |
During standby | 53 dB (A) or less | |
Dimensions (Width x Depth x Height) | 113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm) | |
Weight (with stand) | 587 lb. (266 kg) | |
Environment (*3) | During operation | Temperature: 68 to 86 °F (20 to 30 °C), Humidity: 20 to 80 %RH (no condensation) |
Recommended Environment | Temperature: 68 to 77 °F (20 to 25 °C), Humidity: 40 to 60 %RH (no condensation) | |
Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation) | |
Included items | Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. |
