EFI VUTEk Q3r/Q5r

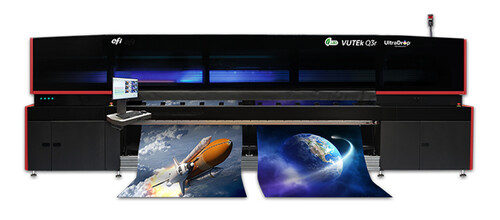

EFI VUTEk Q3r

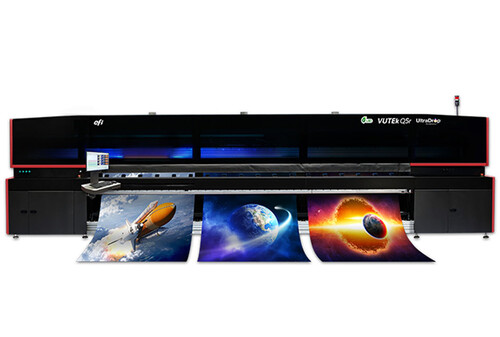

EFI VUTEk Q5r

Printing technology

• Piezo drop-on-demand inkjet technology
• 24 print heads with 7pL UltraDrop Technology
• Up to 1200 dpi true resolution
• Colors: CMYK, LC, LM, LK, optional white and optional clear

Media/Handling

• Handles a wide variety of flexible substrates
• Max printing width up to 138 in  (3.5 m)
• Roll-to-roll, free-fall and multi-roll (2 * 64" / 1.6 m rolls )
• 300% better media utilization – only 16 in (40 cm) wasted on each roll loading
• Optional winder motorized airshaft for precise and excellent media collection
• Optional three-meter Super Duty Rewinder enables working with large media rolls up to 1,750 lbs (793 kg) and 4,410 lbs (2,000 kg) respectively for continuous printing with minimal supervision
• Integrated Mesh Kit for easy and quick changeover to mesh, textile and other porous media

Productivity

• Production speed up to 6,006 ft² (558 m²) per hour
• Quick and easy media loading

Genuine EFI Inks

• EFI™ - 3M™ SuperRange XF Inks
  • ­LED-curable UV inks
  • ­Small dot gain
  • ­Wide color gamut
  • ­Environmentally friendly
  • ­Superb durability
• EFI - 3M™ SuperFlex inks for car wrapping and fleet graphics

Environmental considerations

• Compressed air: 95 psi (6.5 bar) airflow of 4 cf/m (110 L/min), dry and clean air only (not included)
• Operating temperature: 68 °F to 86 °F (20 °C to 30 °C)
• Humidity:
  • Standard range: 30% - 80% (non-condensing)
  • Optimal range: 50% - 80% (non-condensing)
• Machine weight: 11,900 lbs (5,400 kg); crated: 15,400 lbs (7,000 kg)
• Height: 82.7 in (210 cm); with emergency light: 98 in (250 cm)
• Width: 271.65 in (690 cm)
• Depth: 70.8 in (180 cm)
• Electrical:
  • United States and its territories, Canada & Mexico

  3-phase, 208 VAC between phases (±5%), 3 x 32 Amp + N* + GND** (WYE)

  • Rest of world

  3-phase, 380 VAC between phases (±5%), 3 x 32 Amp + N* + GND** (WYE)

• Printing consumption: 2.9 kW, Peak consumption: 5.7 kW
• Chiller: Cooling capacity 3.6 kW – required for LED UV curing (included)

Fiery Digital Front End

• Ships with the EFI Fiery® proServer Premium digital front end, features include:
  • FAST RIP (Fiery Accelerated System Technology)
  • Spot Color, Color Profiler, Color Verifier, Cut Marks and File Export Options
  • 1x Printer Option EFI, 1x Printer Option, M/XL/XXL
  • EFI measurement device
• Other RIP solutions supported
• File formats include: EPS, PS, TIFF, PDF, JPEG

Printing technology

• Piezo drop-on-demand inkjet technology
• 24 print heads with 7pL UltraDrop Technology
• Up to 1200 dpi true resolution
• Colors: CMYK, optional LC, LM, LK, white and clear

Media/Handling

• Handles a wide variety of flexible substrates
• Max printing width up to 208 in  (5.2 m)
• Roll-to-roll, free-fall and multi-roll (3 * 64" / 1.6 m rolls )
• 300% better media utilization – only 16 in (40 cm) wasted on each roll loading
• Optional winder motorized airshaft for precise and excellent media collection
• Optional three-meter and 5-meter Super Duty Rewinder, enables working with large media rolls up to 1,750 lbs (793 kg) and 4,410 lbs (2,000 kg) respectively, for continuous printing with minimal supervision,
• Integrated Mesh Kit for easy and quick changeover to mesh, textile and other porous media

Productivity

• Production speed up to 7,233 ft2 (672 m2) per hour
• Quick and easy media loading

Genuine EFI Inks

• EFI™ - 3M™ SuperRange XF Inks
  • ­LED-curable UV inks
  • ­Small dot gain
  • ­Wide color gamut
  • ­Environmentally friendly
  • ­Superb durability
• EFI - 3M™ SuperFlex XF inks for car wrapping and fleet graphics

Environmental considerations

• Compressed air: 95 psi (6.5 bar) airflow of 4 cf/m (110 L/min), dry and clean air only (not included)
• Operating temperature: 68 °F to 86 °F (20 °C to 30 °C)
• Humidity:
  • Standard range: 30% - 80% (non-condensing)
  • Optimal range: 50% - 80% (non-condensing)
• Machine weight:
  • 14,330 lbs (6,500 kg); crated: 17,640 lbs (8,000 kg)
• Height: 82.7 in (210 cm); with emergency light: 98 in (250 cm)
• Width:  330.70 in (840 cm)
• Depth: 70.8 in (180 cm)
• Electrical:

  United States and its territories, Canada & Mexico

  3-phase, 208 VAC between phases (±5%), 3 x 32 Amp + N* + GND** (WYE)

  • Rest of world

  3-phase, 380 VAC between phases (±5%), 3 x 32 Amp + N* + GND** (WYE)

  Printing consumption: 2.9 kW, Peak consumption: 5.7 kW
• Chiller: Cooling capacity 3.6 kW – required for LED UV curing (included)

Fiery Digital Front End

• Ships with the EFI Fiery® proServer Premium digital front end, features include:
  • FAST RIP (Fiery Accelerated System Technology)
  • Spot Color, Color Profiler, Color Verifier, Cut Marks and File Export Options
  • 1x Printer Option EFI, 1x Printer Option, M/XL/XXL
  • EFI measurement device
• Other RIP solutions supported
• File formats include: EPS, PS, TIFF, PDF, JPEG
