EFI VUTEk D3r/D5r

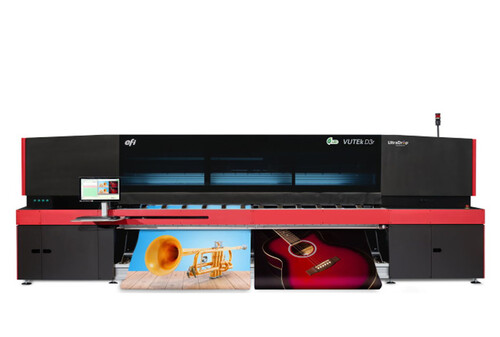

EFI VUTEk D3r

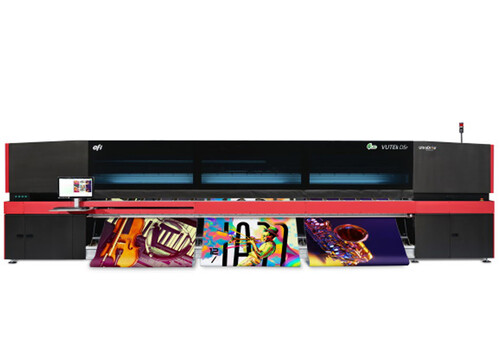

EFI VUTEk D5r

• Piezo drop-on-demand inkjet technology
• Print heads with inherent 7 pL drop size
• Up to 1200 dpi true resolution
• Colors: C, M, Y, K. optional white and clear ink

• Handles a wide variety of flexible and rigid substrates: up to 138 in (350 cm) max printing width
• Roll-to-roll, free-fall, and multi-roll (2 rolls of 63 in/1.6 m)
• 300% better media utilization — only 15.7 in (40 cm) is wasted on each roll loading
• Optional Super Duty Winder enables working with large media rolls up to 1,653 lbs (750 kg) for continuous, unattended work
• Optional Motorized Winders for precise media collection
• Optional Vacuum Plate for thin sheets and rigid media up to 0.43 in (11 mm) thick (factory installed only)

• Production: up to 2,196 ft² (204 m²) per hour
• Quick and easy media loading
• Easy loading and printing

Genuine EFI Inks

• EFI - 3M™ SuperRange XF Inks
  • Environmentally friendly, LED-curable UV inks
  • Small dot gain and wide color gamut
  • Superb durability
• EFI SuperFlex Inks for car wrapping and fleet graphics

Clear Protective Coating

• Printed inline, simultaneously with the image, without slowing production speed
• Full flood or selective
• Glossy or matte finish with same ink
• Provides 3-years outdoor protection against:
  • Abrasion and scratching
  • Chemicals, such as detergents, gasoline, and IPA
  • Weather damage
  • Air pollution
  • UV fading/yellowing
• Saves time versus separate offline coating systems

Environmental considerations

• Compressed air: 95 psi (6.5 bar) air flow of 4 cf/m (110 L/min), dry and clean air only (not included)
• Operating temperature: 68 °F to 86 °F (20 °C to 30 °C)
• Humidity:
  - Standard range: 30% - 80% (non condensing)
  - Optimal range: 50% - 80% (non condensing)
• Machine weight: 9,656 lbs (4,380 kg); crated — 12,742 lbs (5,780 kg)
• Height: 82 in (210 cm)
• Width: 264 in (670 cm)
• Depth: 53 in (135 cm)
• Electrical: 230/380 VAC 3 Phase+N+PE 32 Amp 50/60 Hz
  - Printing consumption: 1.8 kW, Peak consumption: 4.7 kW
• Chiller: Cooling capacity 3.6 kW – required for LED UV curing (included)

• EFI Fiery® proServer SE

• Other RIP solutions are supported

• Piezo drop-on-demand inkjet technology
• Print heads with inherent 7 pL drop size
• Up to 1200 dpi true resolution
• Colors: C, M, Y, K. Optional white and clear ink

• Handles a wide variety of flexible and rigid substrates up to 198 in (520 cm) max printing width
• Roll-to-roll, free-fall, and multi-roll (3 rolls of 63 in/1.6 m)
• 300% better media utilization — only 15.7 in (40 cm) is wasted on each roll loading
• Optional Super Duty Winder enables working with large media rolls up to 1,653 lbs (750 kg) for continuous, unattended work
• Optional Motorized Winders for precise media collection
• Optional Vacuum Plate for thin sheets and rigid media up to 0.43 in (11 mm) thick (factory installed only)

• Production: up to 2,799 ft² (285 m²) per hour
• Quick and easy media loading
• Fast roll-to-roll flatbed switching
• Easy loading and printing in roll-to-roll mode

Genuine EFI Inks

• EFI - 3M™ SuperRange XF Inks
  • Environmentally friendly, LED-curable UV inks
  • Small dot gain and wide color gamut
  • Superb durability
• EFI SuperFlex Inks for car wrapping and fleet graphics

Clear Protective Coating

• Printed inline, simultaneously with the image, without slowing production speed
• Full flood or selective
• Provides 3-years outdoor protection against:
  • Abrasion and scratching
  • Chemicals, such as detergents, gasoline, and IPA
  • Weather damage
  • Air pollution
  • UV fading/yellowing
• Saves time compared to separate offline coating systems

• Compressed air: 95 psi (6.5 bar) airflow of 4 cf/m (110 L/min), dry and clean air only (not included)
• Operating temperature: 68 °F to 86 °F (20 °C to 30 °C)
• Humidity:
  - Standard range: 30% - 80% (non condensing)
  - Optimal range: 50% - 80% (non condensing)
• Machine weight: 13,007 lbs (5,900 kg); crated — 14,109 lbs (6,400 kg)
• Height: 82 in (210 cm)
• Width: 322 in (820 cm)
• Depth: 53 in (135 cm)
• Electrical: 230/380 VAC 3 Phase +N + PE 32 Amp 50/60 Hz
  - Printing consumption: 1.8 kW, Peak consumption: 5.7 kW
• Chiller: Cooling capacity 4.6 kW – required for LED UV curing (included)

• EFI Fiery® proServer SE
• Other RIP solutions are supported
