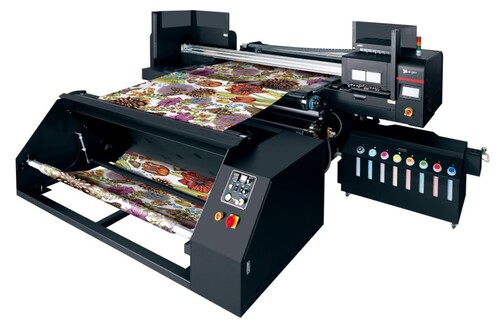

d.gen Artrix Pro har ett högteknologiskt matarsystem utrustat med helautomatiska spänn- och inriktningsanordningar. Det är mycket enkelt att tryck på elastiska tyger med högsta precision tack vare det klibbiga bandet. Torken är mycket kraftfull och lämpar sig för många olika typer av tyger.
Marabu är en certifierad partner till d.gen och säljer sublimeringsskrivare för digitalt textiltryck. Teckna ett serviceavtal i samband med ditt köp för att säkerställa att din maskin presterar som bäst alltid.
Serviceavtal
Printhead | Ricoh Gen6 native 600 dpi, 5 pl per dot and 8 levels of grey scale, 35Khz speed | ||||||||||||
Number of nozzles /printhead | 1280 nozzles | ||||||||||||
Modular system M3 M4 M8 | |||||||||||||
Number of printheads | 3 | 4 | 8 | ||||||||||
Colors | 6 | 8 | 8 | ||||||||||
Speed at 2 pass [m2/h] 600 X 600 dpi | 79 | 76 | 133 | ||||||||||
Speed at 3 pass [m2/h] 600 X 900 dpi | 55 | 52 | 96 | ||||||||||
Speed at 4 pass [m2/h] 600 X 1200 dpi | 41 | 40 | 74 | ||||||||||
Speed at 6 pass [m2/h] 600 X 1800 dpi | 28 | 27 | 51 | ||||||||||
Printhead positioning | 1 row | 1 row | 2 rows | ||||||||||
Media | |||||||||||||
System | sticky belt | ||||||||||||
Roll size (printable width) [mm] | 1800 | ||||||||||||
Roll weight [Kg] | 100 Kg (rubber band shaft) | ||||||||||||
40Kg (media flange) | |||||||||||||
Roll diameter [mm] | 350 | ||||||||||||
Core diameter feeder [mm] [in] | convertible shaft 50.8 and 76.2 mm (2 and 3 inches) | ||||||||||||
Core diameter take-up [mm] [in] | 2 shafts, 50.8 and 76.2 mm (2 and 3 inches) | ||||||||||||
Thickness [mm] | 10 mm approx. | ||||||||||||
Fashion and home-decor | |||||||||||||
Ink type | Pigment | ||||||||||||
Available colors | C, M, Y,K, Or, Bl, Lc, Lm, Sc, Gr | ||||||||||||
Media | Cotton, linen, wool, poly, viscose, polycotton and other blended fabrics | ||||||||||||
Main applications | Fashion, Home Textile, Accessories | ||||||||||||
Connectivity | |||||||||||||
Interface | Gigabit Ethernet (1000Base-Tx) | ||||||||||||
Footprint | |||||||||||||
Full set | 4440 x 4253 (700 mm of spacing) | ||||||||||||
Total Av. Consumption [kW] | |||||||||||||
Printer | 3Ø AC 380V 14.9 A (9.8 kW) | ||||||||||||
Dryer (6heaters) | 3Ø AC 220V 12.0 A (7.8 kW) | ||||||||||||
Full set | 17.7 kW |
* Speed measured at maximum printing width
